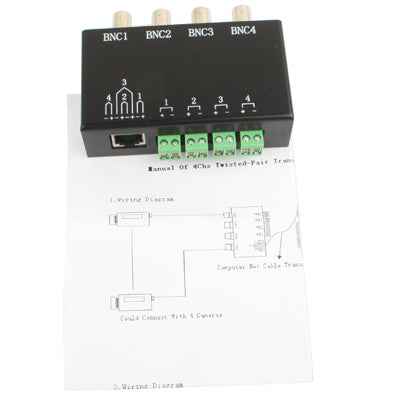

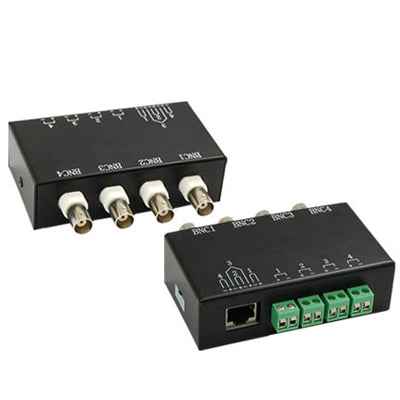

4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver

4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver

€15,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

SKU: S-CVB-0148 Category: Tag: Great Deal Offers, Shopify Collective

Description
Product Reviews

Description:

1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable.

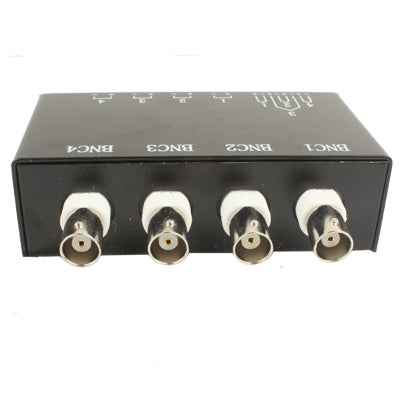

2) Input: BNC-video

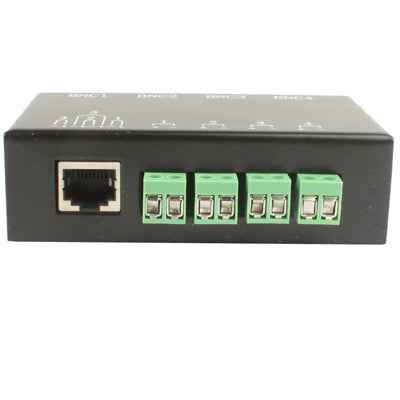

3) Output 1 of 4ch box - One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4).

4) Output 2 of 4ch box - Four screw output for 4 channels.

5) Passive design (no power required).

6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching.

7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission.

8) Maximum 300m color video working distance (much better than coaxial cable 100m).

9) Casing Material: Metal

10) Dimension: 96x80x30mm

11) Weight: 257g

Specification:

Package Weight

One Package Weight

0.23kgs / 0.51lb

One Package Size

11cm * 10cm * 5cm / 4.33inch * 3.94inch * 1.97inch

Qty per Carton

96

Carton Weight

26.90kgs / 59.30lb

Carton Size

46cm * 42cm * 32cm / 18.11inch * 16.54inch * 12.6inch
