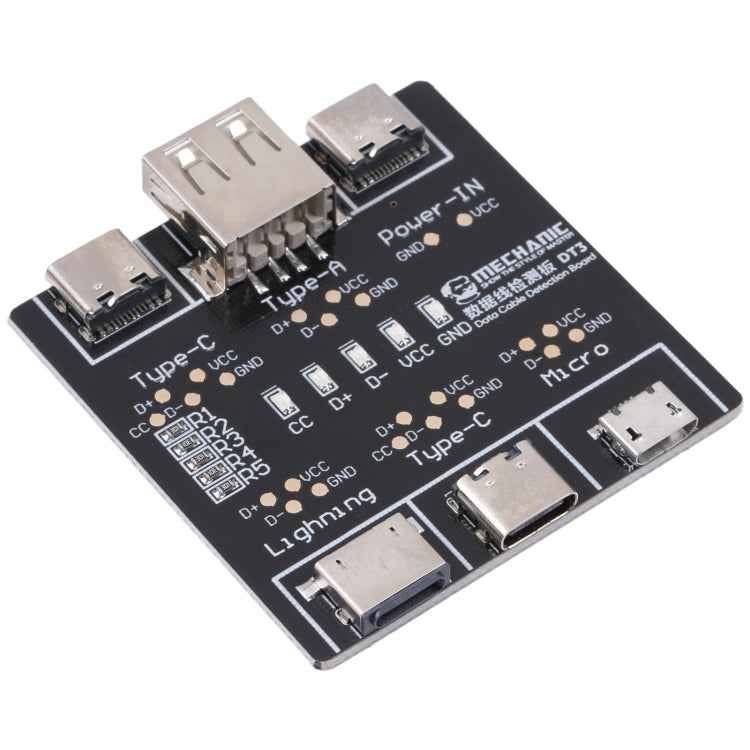

MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester, DT3 Tester

MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester, DT3 Tester

€9,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Option:

DT3 Tester

SKU: SPT0611 Category: LJ-Automotive - Garage & Workshop Equipment & Car Maintenance Tools. Tag: Great Deal Offers, Shopify Collective

Description
Product Reviews

1. Interface Type:USB / Type-C 1 / Type-C 2 / USB-Micro / Lighting
2. Power Supply Port Type:Type-C
3. Output Current:1A
4. Output Voltage:5V
5. Product Size:About 48.5x45mm
6. Net Weight:About 12g
7. The measurement allowed error is +/- 1.0-2.0cm

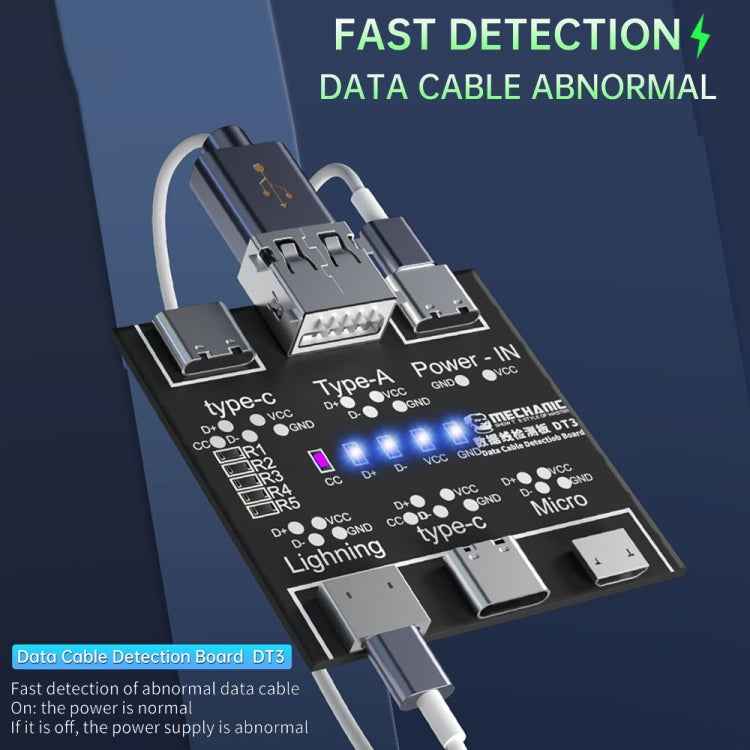

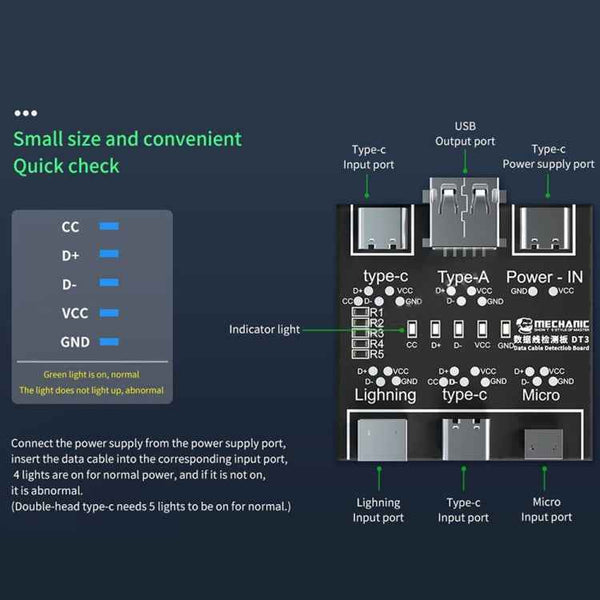

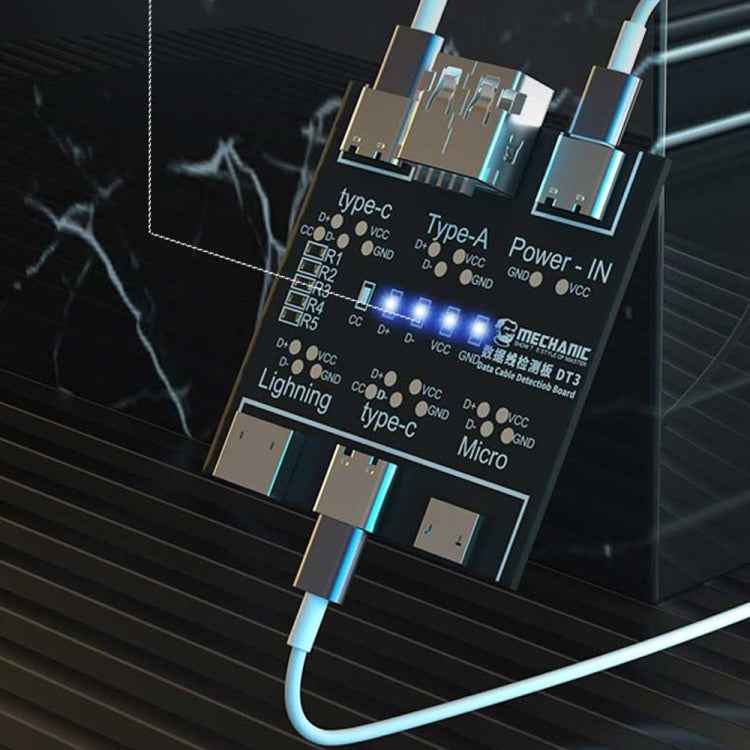

8. All 4 indicator lights are on, then the data line is normal (double-head type-C data line requires all 5 indicator lights to be on).
9. If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal.
10. D+ or D- is off, indicating that the data transmission function is abnormal.
11. CC is dedicated to double-head type-C data line detection. When testing other data lines, the light will not turn on.
12. The operation is simple, the detection is convenient, and the detection efficiency of the data line is improved.
13. Uncompromising performance in an ultra-light body,heavyweight performance without the weight.

Specification:

Package Weight

One Package Weight

0.05kgs / 0.11lb

One Package Size

9.5cm * 6.2cm * 1.5cm / 3.74inch * 2.44inch * 0.59inch

Qty per Carton

200

Carton Weight

8.60kgs / 18.96lb

Carton Size

32cm * 30cm * 22cm / 12.6inch * 11.81inch * 8.66inch
