3-Ch Relay Expansion Board Designed For Jetson Nano, Optocoupler Isolation

This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.

Features

• Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
• Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
• Optocoupler isolation, prevent interference from the high voltage circuitry

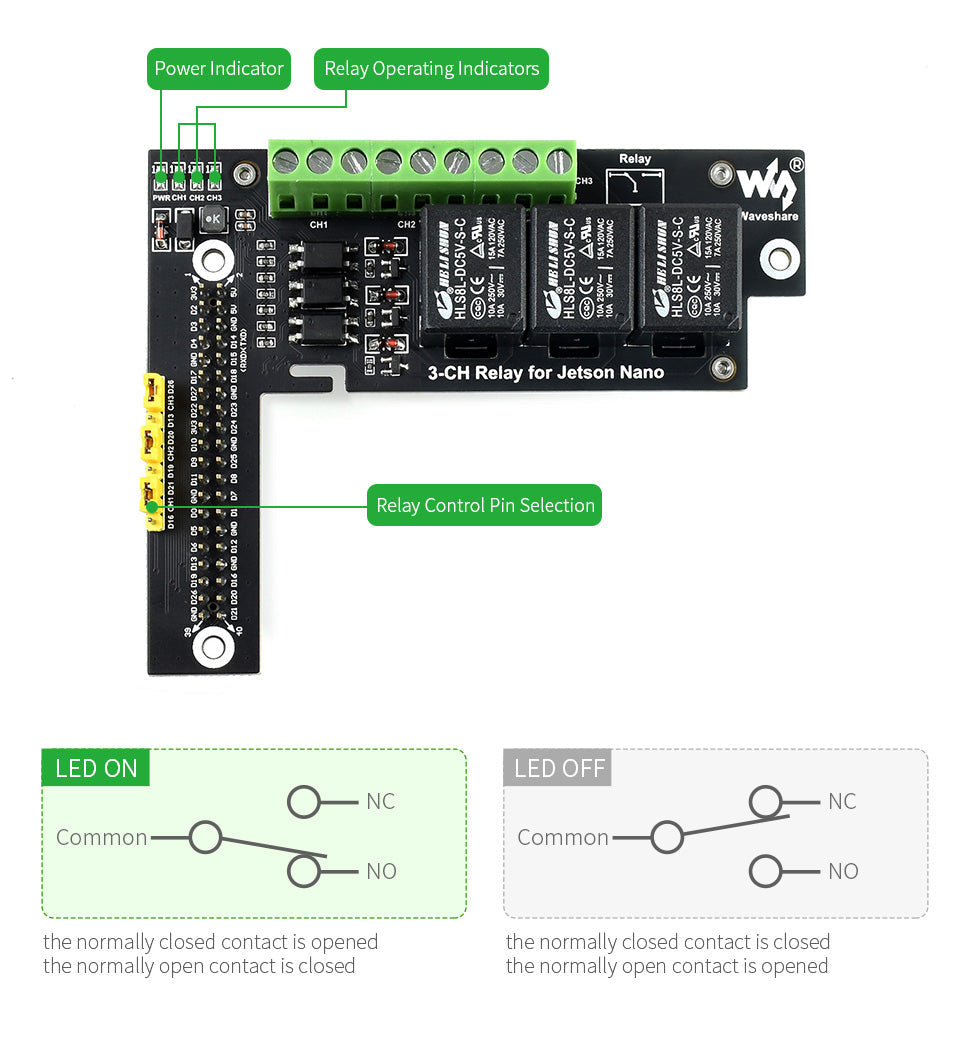

• Indicators for monitoring the relay operating status

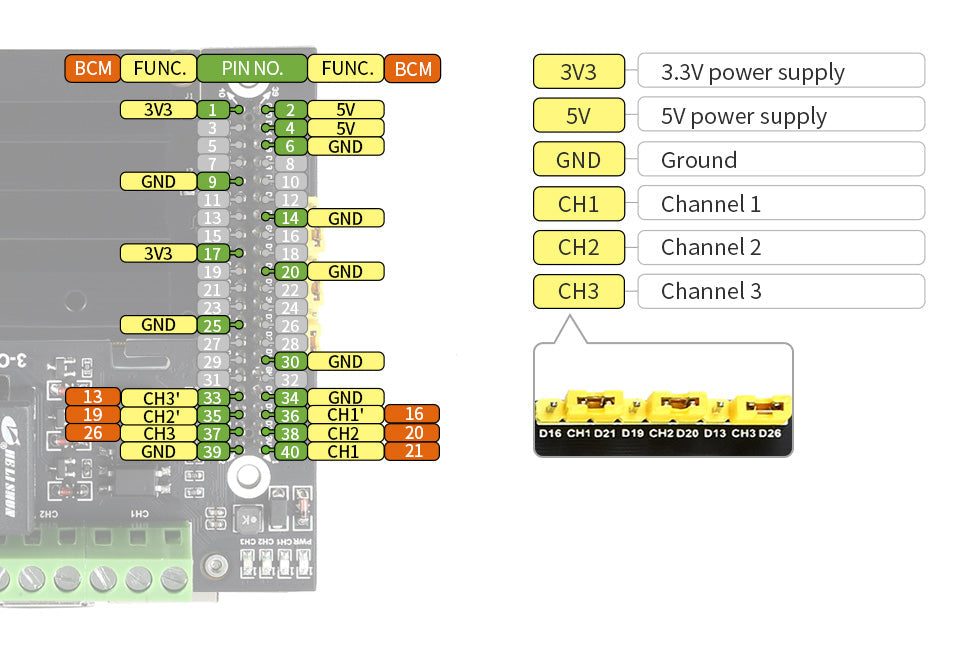

• Control pins of relays are configurable via jumpers
• Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
• Comes with development resources and user manual (python and python-bottle examples)

3-Ch Relay Control

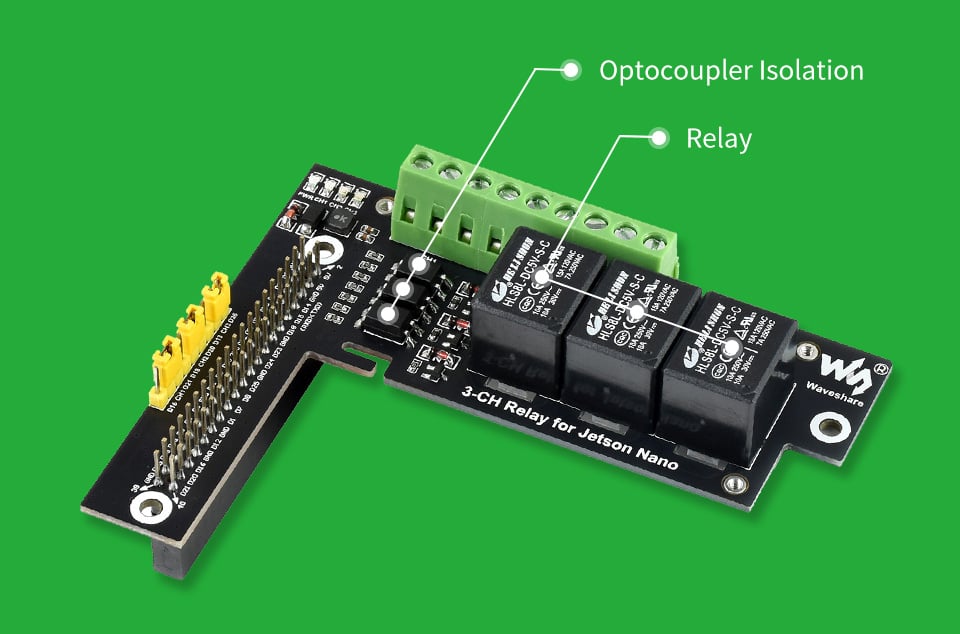

Quality Relay Component With Optocoupler Isolation

Includes

• 3-CH Relay for Jetson Nano x1
• Acrylic panel x1
• Screws pack x1

Note: Jetson Nano is NOT included.

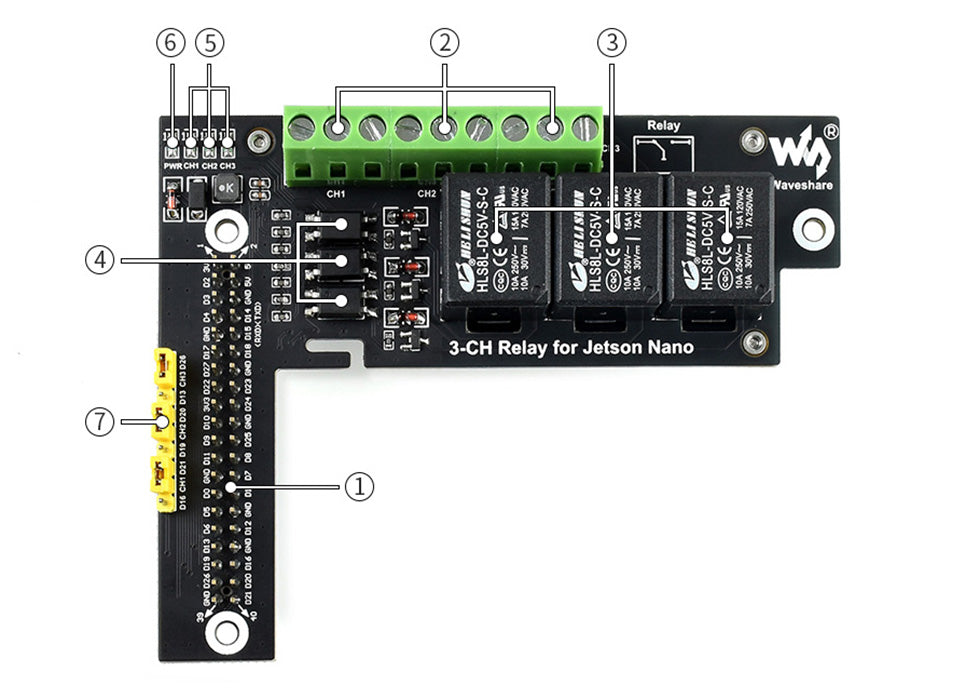

Board Overview

Dimension

Resources

• Product Wiki
