Caddx Nebula Pro Vista Kit HD Digital FPV System (720p/120fps)

Caddx Nebula Pro Vista Kit HD Digital FPV System (720p/120fps)

€177,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Colour:

SKU: 99C-2C6-B91 Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

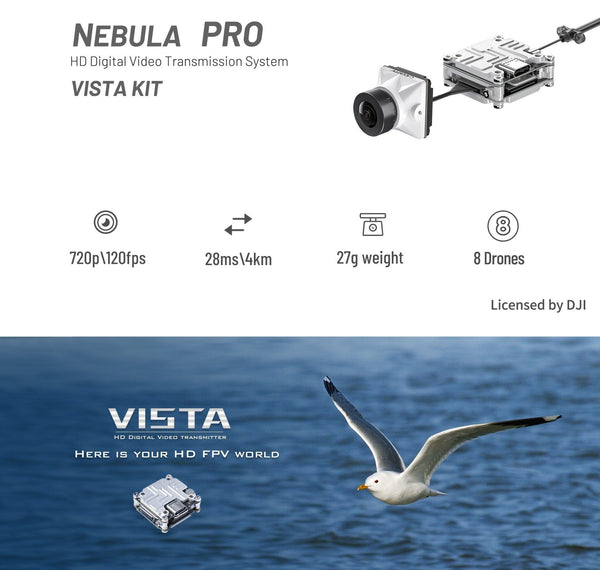

The Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Vista set with new and improved Nebula Pro camera.

The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition picture and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!

Features

Lightweight digital image transmission combination
Stable and clear HD video
720p 120fps, 32ms/4km
8 channels, 8 drones
Embedded Remote Controller Receiver

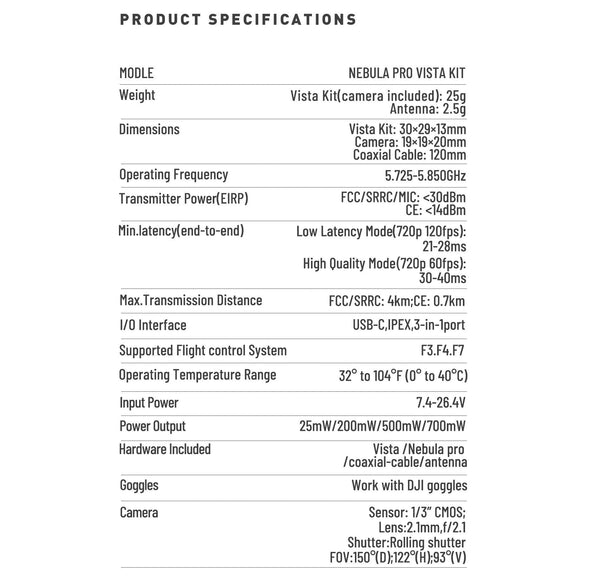

Specifications

Model: Vista Kit (Nebula Pro)
Weight: Camera included: 27g/Antenna:2.5g
Dimensions:
- Vista Kit: 30x29x13mm
- Camera: 19x19x20mm
Coaxial Cable:80mm/120mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
Min. Latency (end-to-end):
- Low Latency 720p 120fps: 12-28ms
- High Quality Mode: 720p 60fps: 30-40ms
Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1 Port
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
Input Power: 7.4-26.4V
Power output: 25mW/200mW/500mW/700mW
Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
Goggles: work with DJI goggles
Camera:Sensor: 1/3''CMOS
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
FOV: 150°[D],122°[H],93°[V]
