Diatone Mamba Toka 1103 2-3S Brushless Motor (6500Kv, 8500Kv)

Diatone Mamba Toka 1103 2-3S Brushless Motor (6500Kv, 8500Kv)

€8,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

KV Rating:

6500

8500

SKU: 0C2-021-8CC Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

The new TOKA 1103 motor from Diatone is their latest offering into the micro space - replacing their previous Mamba 1103's, these motors offer a much-improved Unibell design, with a guard for your windings and retainer for your wires - a truly premium offering!

MAMBA TOKA 1103 8500KV Racing motor

Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage:2~3S (8.4V~12.6V)
Peak Current: 10.8A
ldle Current：4V/0.42A
Maximum Power: 130W
Internal Resistance：170Ω

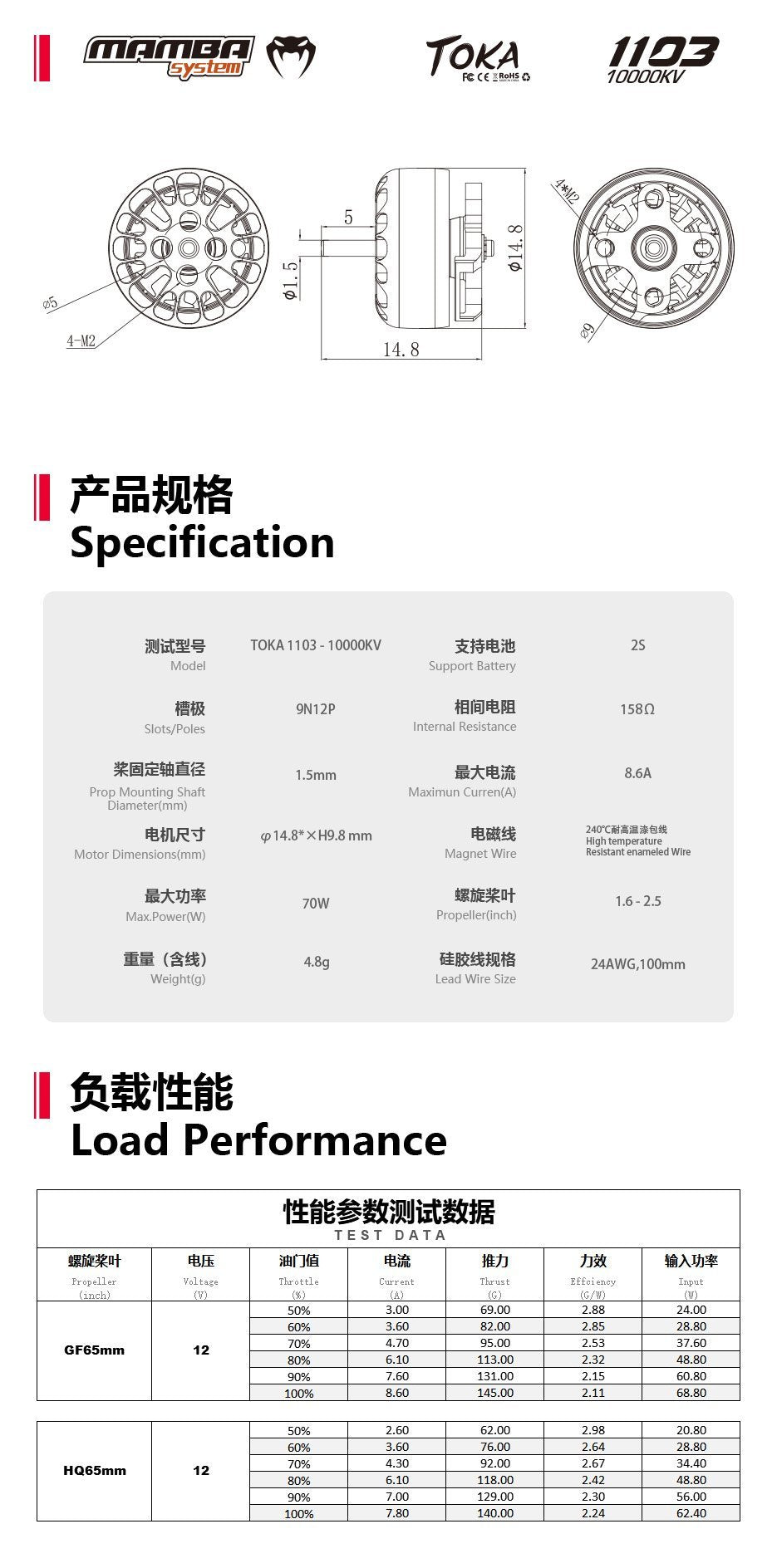

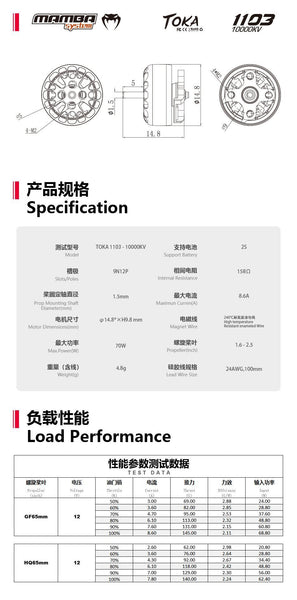

MAMBA TOKA 1103 10000KV Racing motor

Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage:2S (8.4V)
Peak Current: 8.6A
ldle Current：4V/0.5A
Maximum Power: 70W
Internal Resistance：158Ω
