Flywoo GOKU GN405 Nano HD 35A Stack V3 W/ TXCO ELRS 2.4g

Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G (16x16) - The Ultimate Micro Flight Controller

The Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G is an ultra-compact flight controller packed with serious capabilities for micro drone enthusiasts. Designed with a 16x16mm M2 mounting pattern , it offers seamless compatibility with tight builds while delivering top-tier performance. Powered by the STM32F405 BGA MCU and the precision-tuned ICM-42688P gyro , this board ensures rock-solid stability and smooth flight control.

With built-in ExpressLRS 2.4G , the GOKU GN405 provides superior long-range control and low-latency performance. It also boasts six UART ports , making it easy to connect peripherals like GPS, VTX, and receivers without hassle. Plus, the DJI O3/O4 plug-and-play support brings stunning HD video capabilities to your micro quad with minimal wiring.

Adding convenience, the modern USB-C port ensures effortless firmware updates and tuning, while the 16MB Black Box gives you ample storage to fine-tune your flight performance. Whether you're building a nimble freestyle quad or a long-range cruiser, this FC has you covered.

Key Features:

• Compact 16x16mm mounting - Perfect fit for micro drone builds.
• STM32F405 BGA MCU - High-speed processing for precise control.
• ICM-42688P Gyro (SPI) - Ultra-responsive, stable flight performance.
• Built-in ExpressLRS 2.4G receiver - Reliable, long-range control.

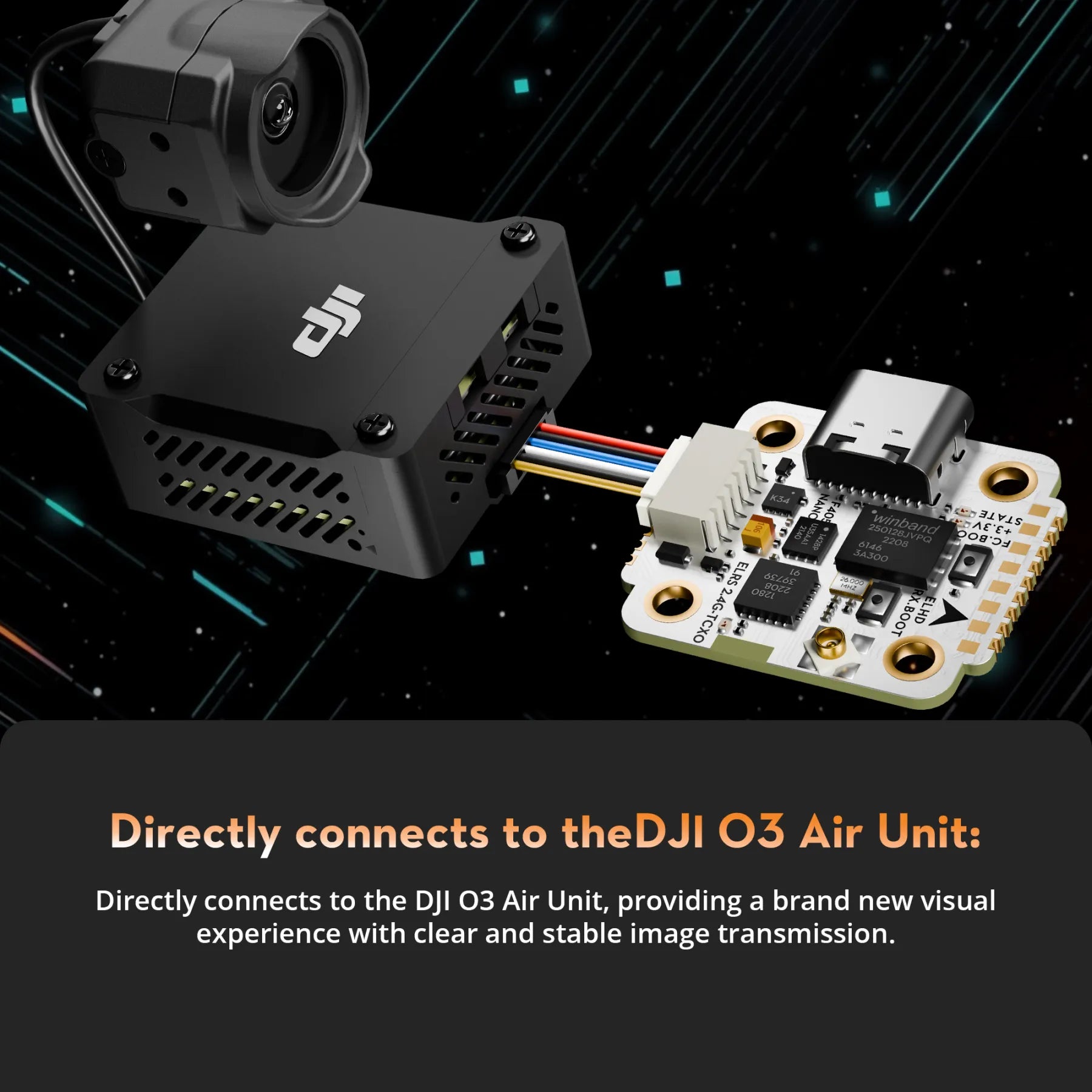

• DJI O3/O4 compatibility - Plug-and-play HD digital video support.
• 6 UART ports - Extensive connectivity options for peripherals.
• 16MB Black Box - Flight data logging for better tuning and insights.

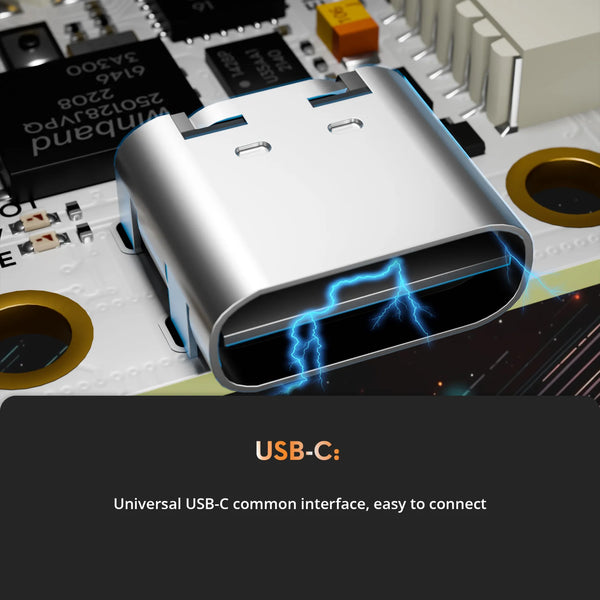

• USB-C interface - Modern, fast, and easy connectivity.
• 2-6S LiPo support - Wide voltage range for versatile builds.

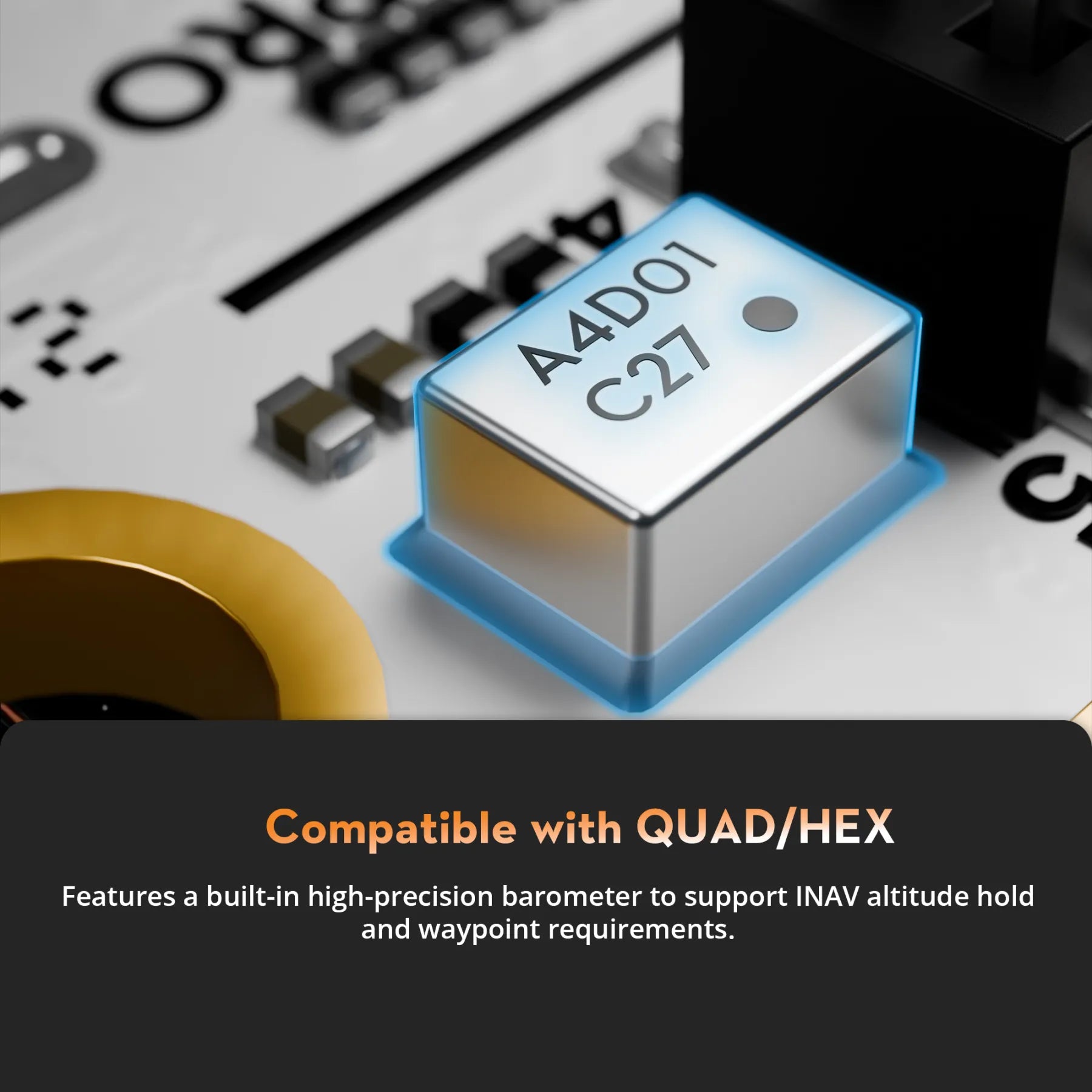

• Integrated barometer - Provides accurate altitude readings.

Specifications:

• Model: Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
• MCU: STM32F405 BGA
• Gyro: ICM-42688P (SPI)
• OSD: Not included
• Barometer: DP310
• Black Box Storage: 16MB
• USB Port: Type-C
• UART Ports: 6 (1,2,3,4,5,6)
• Input Voltage: 7.4V - 24V (2-6S LiPo)
• BEC Output: 5V 2A / 3.3V 0.5A
• Dimensions: 25mm x 23mm x 8mm
• Mounting Holes: 16x16mm (M2)
• Weight:
  • 6.5g (FC + 35A ESC)

What's in the Box:

• 1x Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
• 1x Cable set
• 1x Mounting hardware

Note: Included accessories may vary based on availability.
