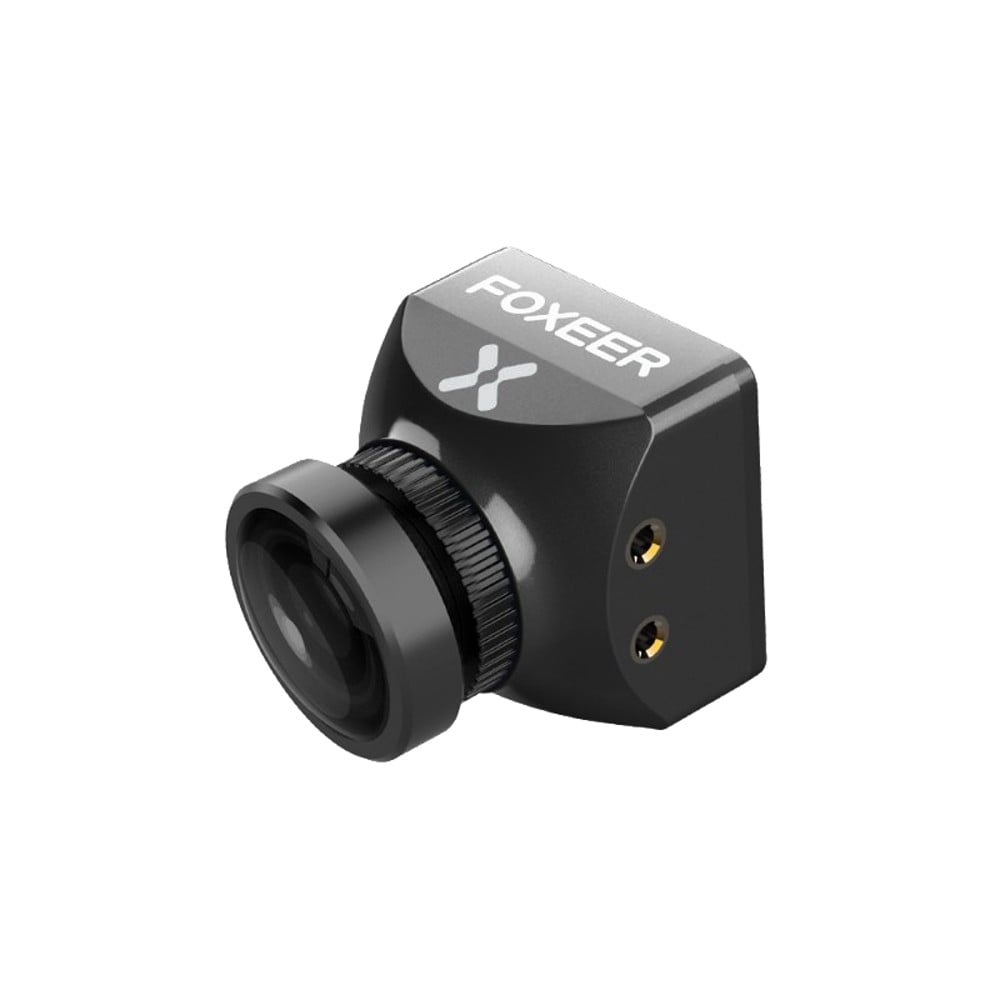

Foxeer Cat 3 Mini - 1200TVL Super Low Light FPV Night Camera

The Foxeer Mini Cat 3 StarLight FPV Camera, with its large aperture night vision lens and LED optimization, is a great option for nighttime flights. With less noise and low latency, it is sure to enhance your low-light navigation.

Foxeer CAT 3 Manual

Features

• Less Noise
• Low Latency
• 0.00001LUX Super Starlight
• Exclusive optimization for LED
• Switchable 4:3/16:9 & PAL/NTSC
• Large Aperture Night Vision Lens
• Supports OSD & Menu Remote Control with Foxeer FC

Specifications

Sensor Type Sony 1/3" CMOS Sensor

• Scale: 4:3 (Default)/16:9 Switchable
• Tv System: PAL(Default)/NTSC Switchable
• Resolution: 1200TVL
• Lens: M12 2.1mm Low Light Lens
• FOV: 4:3 FOV-H: 100° FOV-D:125° 16:9 FOV-H: 100° FOV-D:115°
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output: CVBS Analog Signal
• Minimum Illumination: 0.00001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.6V~20V
• Language: ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 95mA±15% @ DC12V
• Dimension: 22*22mm; 28*22 (with Bracket)
• Weight:12.2g (Excluding cable)

Includes

• 1x Foxeer Mini Cat 3 Camera
• 1x Hardware Set
• 1x OSD Board
• 1x 2-Pin OSD Cable
• 1x Bracket
• 1x Servo Cable
