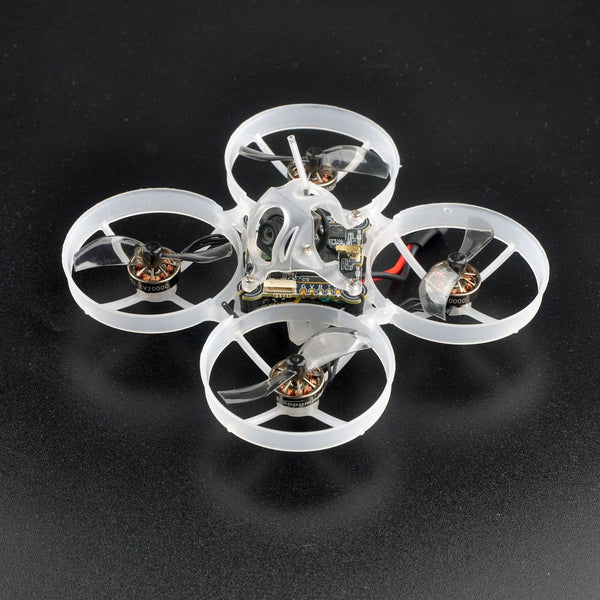

Happymodel Moblite7 HDzero 1s 75mm Brushless Whoop

Happymodel Moblite7 HDzero 1s 75mm Brushless Whoop

€225,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Receiver:

ELRS 2.4Ghz

SKU: 5A10054 Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

Features

Lightweight 1S whoop with HDzero FPV TX unit onboard
Powerful and efficient
SuperBee F4 AIO Flight Controller
HDzero Whoop Lite VTX and Nano camera digital FPV system
EX1002 brushless motors
Low profile Canopy design

Specifications

Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm
Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0

Flight controller SuperbeeF4 Lite ELRS/FRSKY	SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: ICM20689 or ICM42688P or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module
Onboard Frsky SPI D8 /D16 2.4GHz Receiver	SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
Motor	Model: EX1002 20000KV Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ13.5mm12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only
Propeller Gemfan 1610-2 Bi-blades	Weight:0.24g Material: PC Pitch:1 inchProps Dia:40mm Center Hole Dia:1.5mm
HDZero Nano Lite Camera	14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX	1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding)

Resources

Included

1 x Happymodel Moblite7 HDZERO
1x spare canopy (depending on supply so you may not receive this)
1x screw driver and prop removal tool (depending on supply so you may not receive this)
