HolyBro Kopis Mini FPV Quadcopter PNP (DJI FPV Air unit/ Caddx Air unit not included)

HolyBro Kopis Mini FPV Quadcopter PNP (DJI FPV Air unit/ Caddx Air unit not included)

€165,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

SKU: FD5-686-1A9 Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

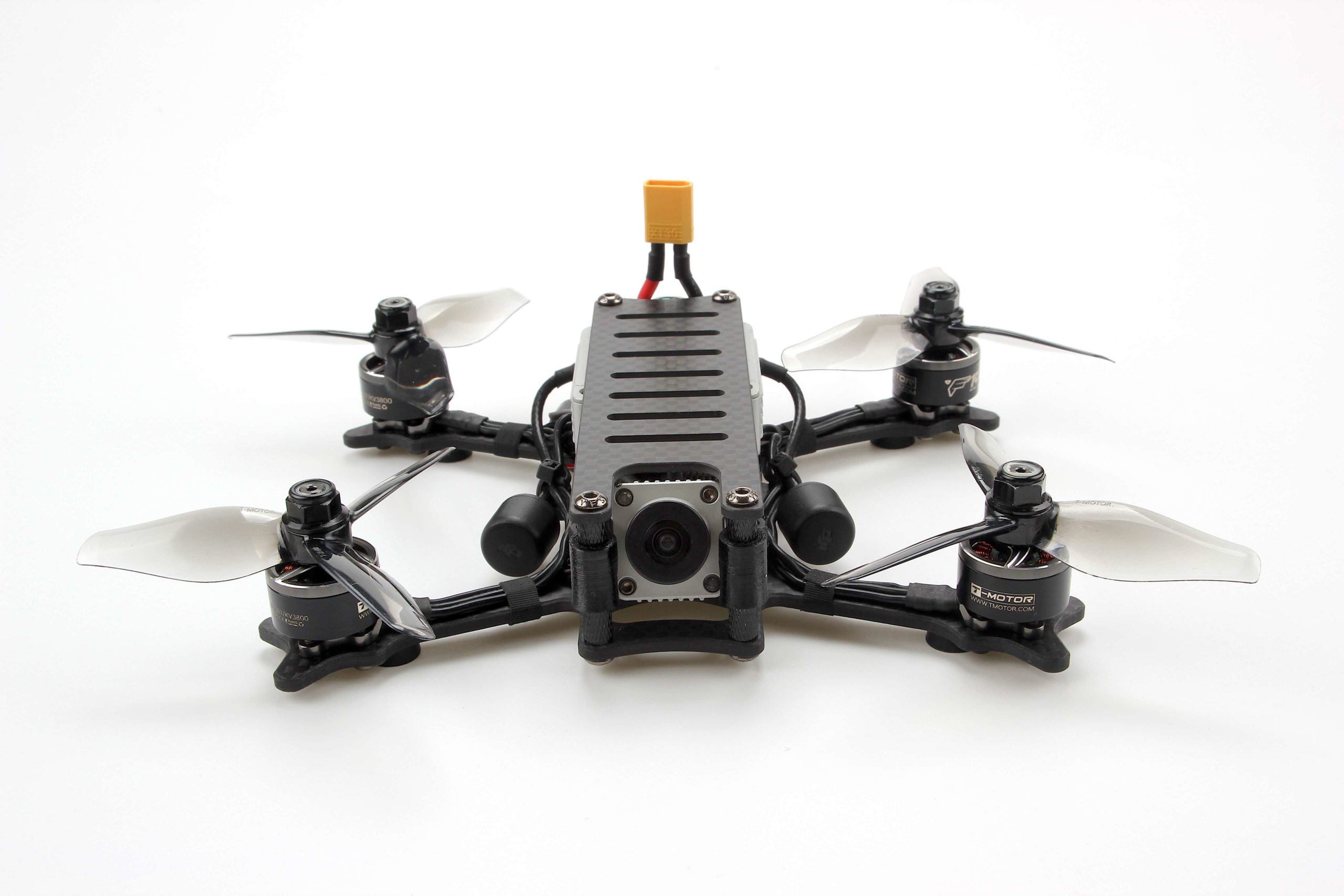

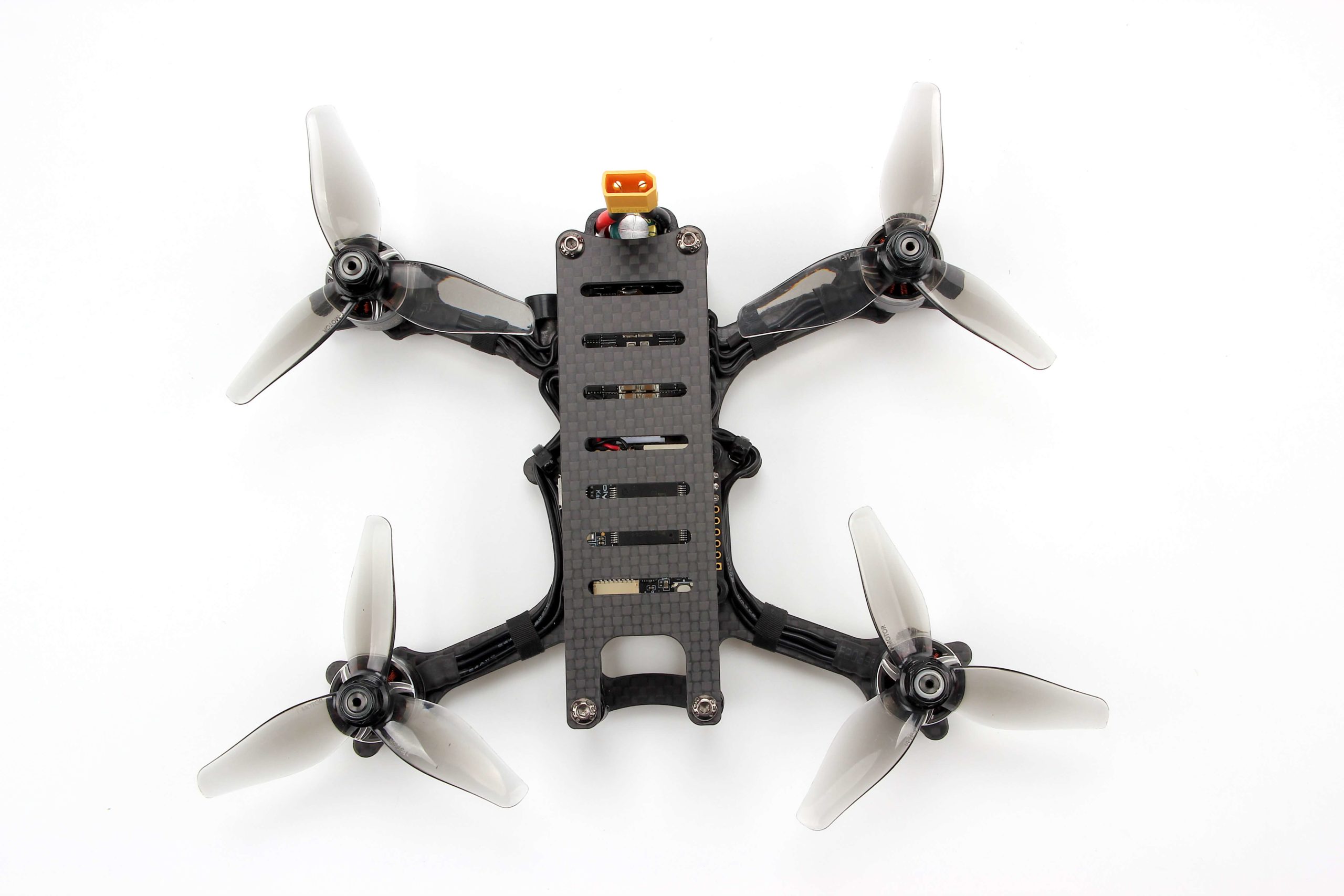

This is the Kopis Cinewhoop, a 3" quadcopter designed for the DJI FPV system. This gives you crisp HD FPV footage, in a small form factor while keeping the total weight under 180g. This Quadcopter is powered by the Kopis HDV stack, complete with a 45A Blheli32 ESC powering Tmotor F1507 motors.

DJI FPV air unit is not included with this kit, but it can easily be installed without any soldering as it is plug and play. Unless you are using the DJI FPV remote, you will need to install your own receiver (soldering may be required).

Manual

Holybro_Kopis-mini(DJI_FPV_version)_Manual

3D print files

If you don't have your own 3D printer, we offer an affordable printing service her e

Features

Frame:3mm 3k carbon fiber
Flight Controller:Kakute F7 HDV
ESC:Tekko32 F4 4in1 45A mini ESC
VTx: Caddx Vista Digital HD System for DJI HD FPV (Not included!)

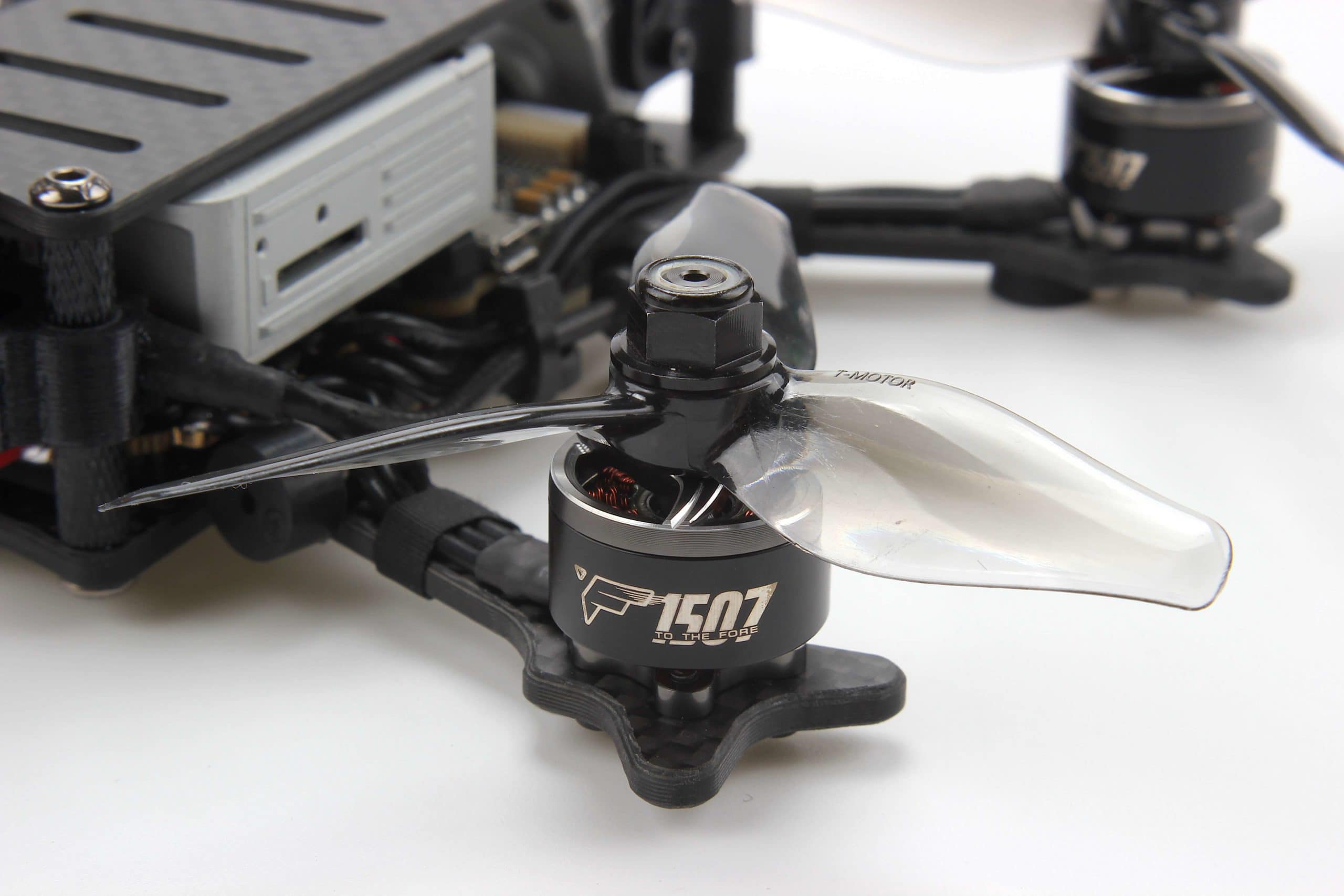

Motor：F1507 KV3800
Propeller：T3140
Buzzer included.
Battery plug: XT30
Wheelbase: 148.6mm
Weight:176g（included CADDX FPV Vista）
Recommend battery: 650mah~1300mah 4s

Specifications

MCU: STM32F745 32-bit processor
IMU: MPU6000 (SPI)
Barometer: BMP280
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without "uninvert hack".
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
TF card for Blackbox logging
