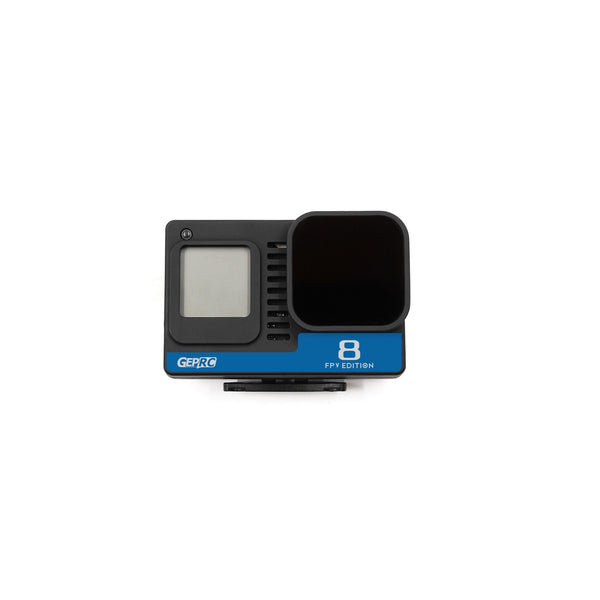

Naked GoPro Hero 8 Full Camera

This is a fully assembled and ready to use Naked Gopro Hero 8 camera, ideal if you want to record high quality cinematic 4K Hypersmooth footage onboard a small cinewhoop.

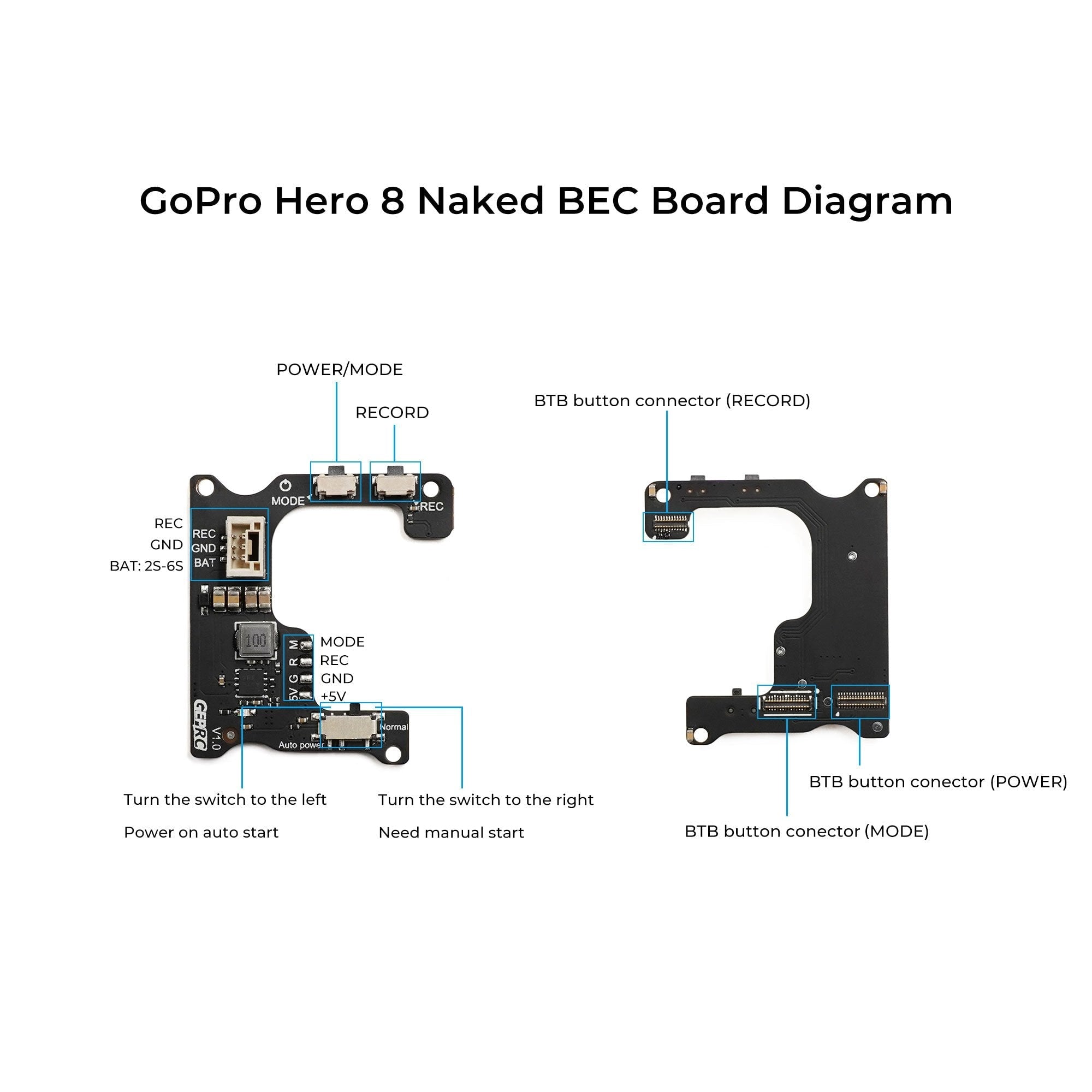

GEPRC team specially designed a new case, BEC board, ND16 filter and mounting base for Naked GoPro Hero 8 Full Camera.The Canopy was made of ABS material with light weight and high strength features, The surface adopted oil spray technology, Really does feel smooth and delicate.ND16 filter can reduce the light input of camera sensor without changing the image color.BEC supports 2S-6S voltage input and 5V-2A stable output and it perfectly matches GoPro hero8 motherboard, Very easy to install.The installation spacing of the base is 24.5mm, which is suitable for various GEPRC Quadcopters, such as CineLog series, Crocodile baby series, Rocket series and Crown series,etc…

Geprc-gopro8-naked-User-Manual

Features

1. Motion camera specially designed for FPV quadcopter,Ultra lightweight, only 25.7grams.
2. 4K ultra wide angle lens, use special ultra wide angle MOV to shoot 4K@60fps video, reduce distortion and restore details.
3. HyperSmooth 2.0+ stabilizes the video,and also stabilizes the video through Reelsteady go software.
4. LCD front screen,clear at a glance,switcing mode,convenient and fast,Through the preset QR code switching video settings,scanning code to switching.
5. Include UV protection lens,ND 16 filter can reduce the amount of light into the camera sensor and without changing the image color.
6. The Frame includes fixing base and mounting base.
7. Control wire quick release interface,transmitter control shooting and supports directly power supply by 2s-6s FPV batterIes.Connecting FC to realize remote control,You can also use the transmitter to remote shooting.
8. Anti pop design,Providing protection enough when the SD card ejecting due to the impact of the crashed.
9. Entire canopy Spray Technology and Coating Treatment,The appearance is more textured and the touching is great and silky.
10. Fits directly onto many GEPRC Frames such as the Cinelog25,Crocodile Baby5,Smart35 and other frames.
11. Includes mounting base

Precautions - Read Before Use - failing to do so may void your warranty.

1. Since this is a lightweight, customised GoPro camera, it does not have sufficient cooling, when powered on please ensure you have some airflow over your camera to prevent it overheating (take off as soon as camera turns on to avoid damaging the camera sensor)
2. This is not an official GoPro camera it does not come with any extended warranty. It simply uses parts from GoPro cameras.
3. This camera does not have reverse polarity protection so please make sure the camera is wired and powered correctly according to the specification
4. We only offer dead on arrival warranty due to the delicate and customised nature of this camera. Please make sure that the unit is working and notify us within 7 days of receipt if you have any issues.

Specifications

• Model: GEPRC Naked GoPro Hero 8 Full Camera
• Brand name: GEPRC
• Color: black/blue
• Video: 4K@60fps/4K@30fps/2.7K@50fps
• Video format:MP4
• Video code: H.264/AVC,H.265AEVC
• Input voltage: 2S-6S
• Output: 5V@2A
• Connector: GH1.25-3P Connector
• Protection: UV proction lens
• Filter: ND16 filter

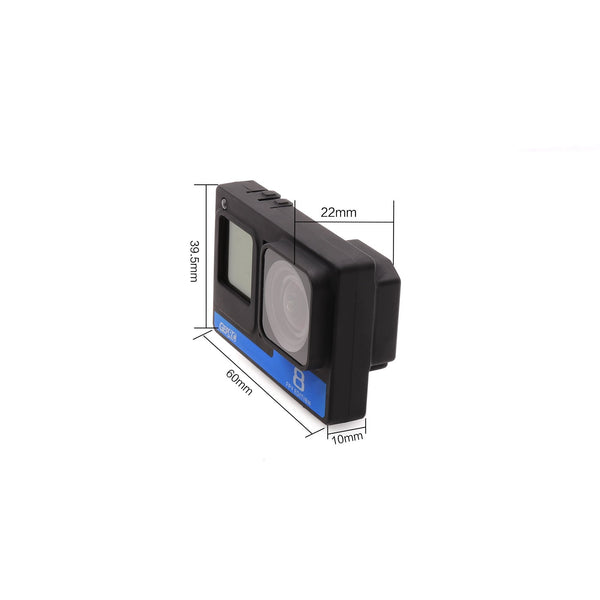

• Size: 60mm*39.5mm*22mm
• Weight: 25.7g

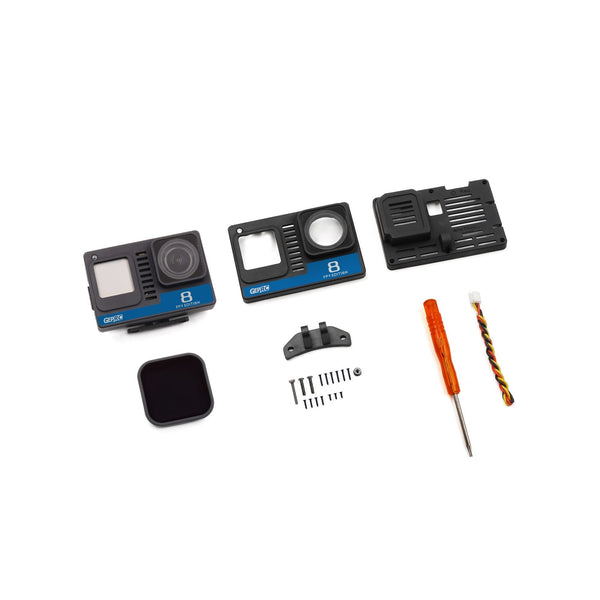

Included

• 1 x GoPro Hero 8 Naked full camera
• 1 x GEPRC GoPro Hero 8 Naked case
• 1 x ND16 Filter
• 1 x Mounting Base
• 1 x Control cable
• 1 x Matching screwdriver
• 1 x Matching screw package
• 1 x Dustproof cloth

How to use remote recording via your flight controller

You need to use resource mapping to use the Pinio functionality in betaflight to enable this on the pin you have connected this to on your flight controller (usually the LED_STRIP pin)
