UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Small Board Full Set, UPA V1.3 Small Board Full Set

UPA V1.3 Car USB Programmer ECU Chip Tuning Eeprom Small Board Full Set, UPA V1.3 Small Board Full Set

€31,95

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Option:

UPA V1.3 Small Board Full Set

SKU: CRP3138 Category: Tag: Mira Sales, Shopify Collective

Description
Product Reviews

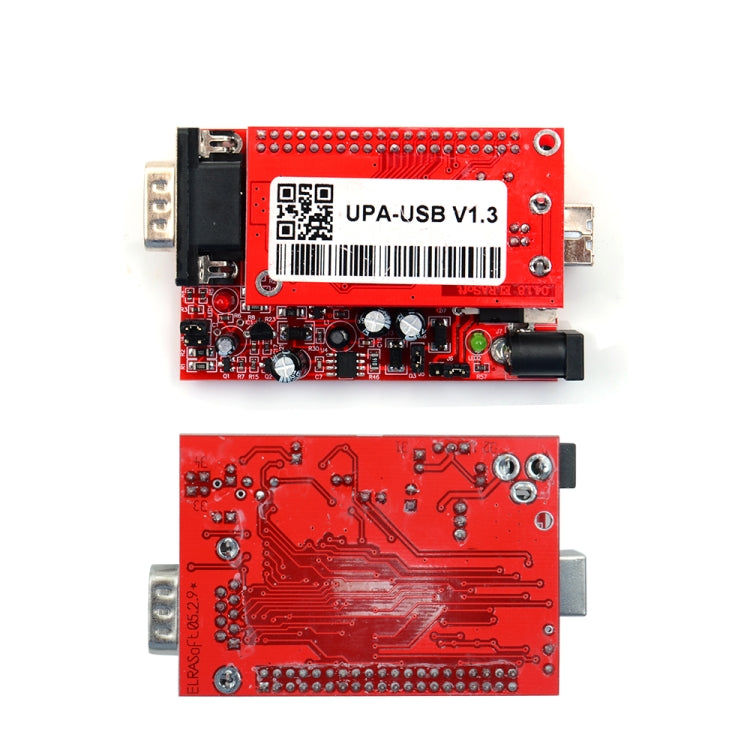

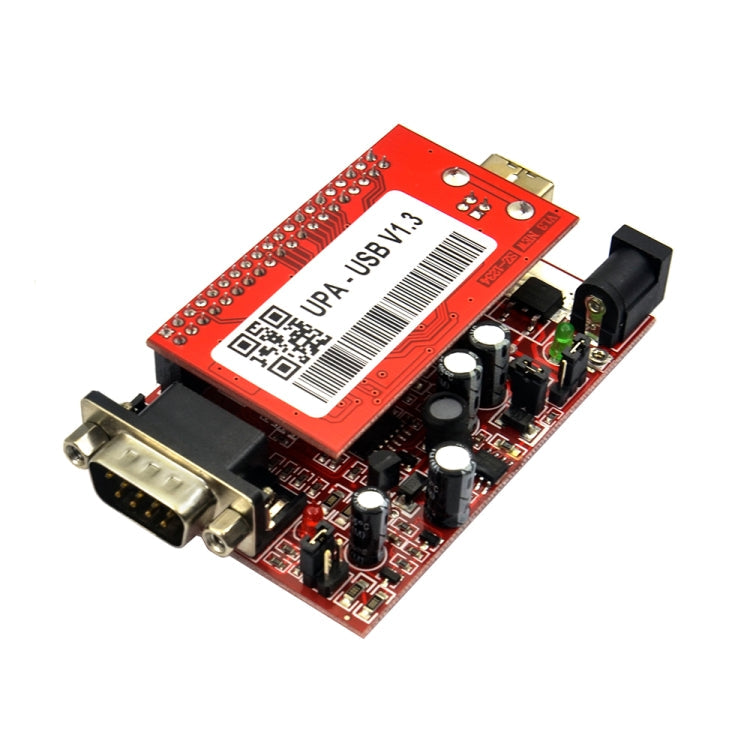

1. New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It is equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.
2. Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
3. Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.
4. The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector).
5. Language: English.
6. Version:
HW:V2014
SW:V1.3

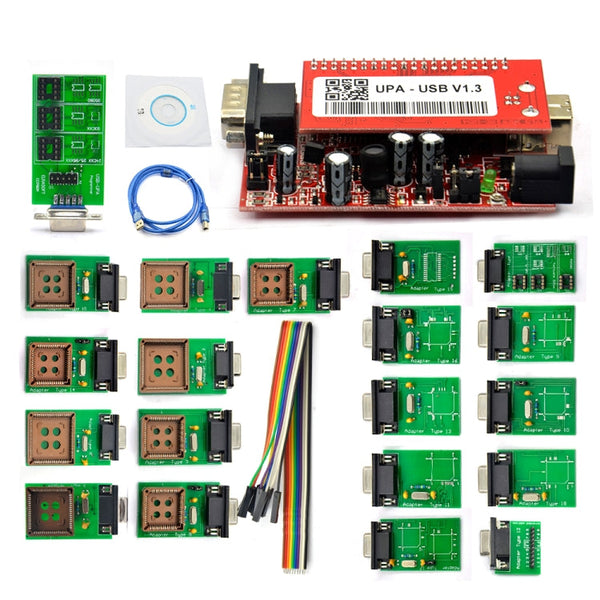

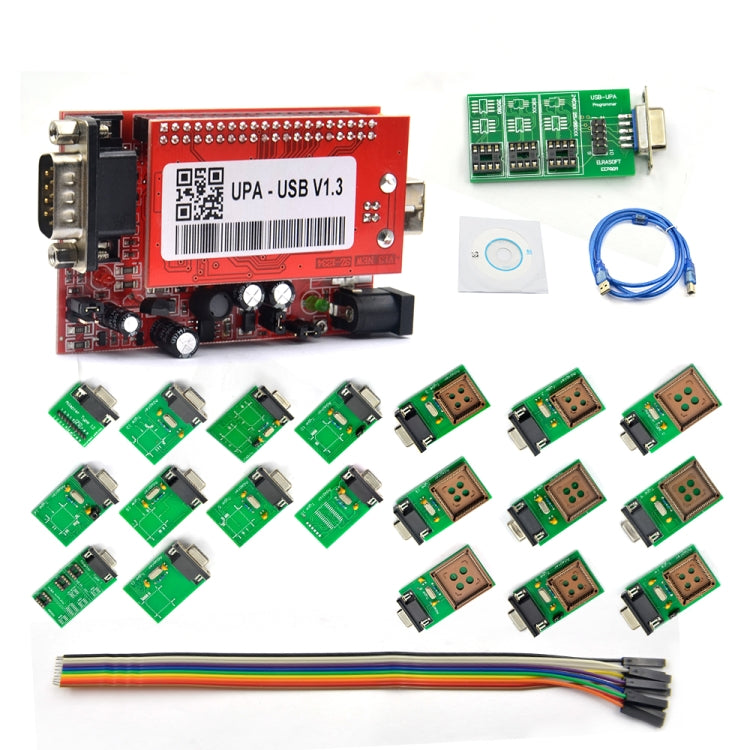

Package list
Main unit x 1
USB??cable x 1
CD x 1
5pin cable x 1
Adapter Type1 Per eprom I2C,SPI, Microware e M35080 x 1
Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84 x 1
Adapter Type3 Motorola MC68HC08AS-PLCC52 x 1
Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68 x 1
Adapter Type5 Motorola MC68HC(9)08-QFP64 x 1
Adapter Type6 Motorola MC68HC11F1-PLCC68 x 1
Adapter Type7 Motorola MC68HC05H12-PLCC52 x 1
Adapter Type8 Motorola MC68HC11K-PLCC84 x 1
Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52 x 1
Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
Adapter Type11 Motorola MC68HC11K-QFP80 x 1 x 1
Adapter Type12 Extended address x 1
Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64 x 1
Adapter Type14 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
Adapter Type15 Motorola MC68HC(7)05E6-SOIC28 x 1
Adapter Type16 Motorola x 1MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80 x 1
Adapter Type18 Motorola MC68HC11F1-QFP80 x 1
Adapter Type19 Motorola MC68HC11L6-PLCC68 x 1

Specification:

Package Weight

One Package Weight

0.51kgs / 1.13lb

One Package Size

18cm * 16cm * 2cm / 7.09inch * 6.3inch * 0.79inch

Qty per Carton

50

Carton Weight

26.75kgs / 58.97lb

Carton Size

38cm * 32cm * 28cm / 14.96inch * 12.6inch * 11.02inch
