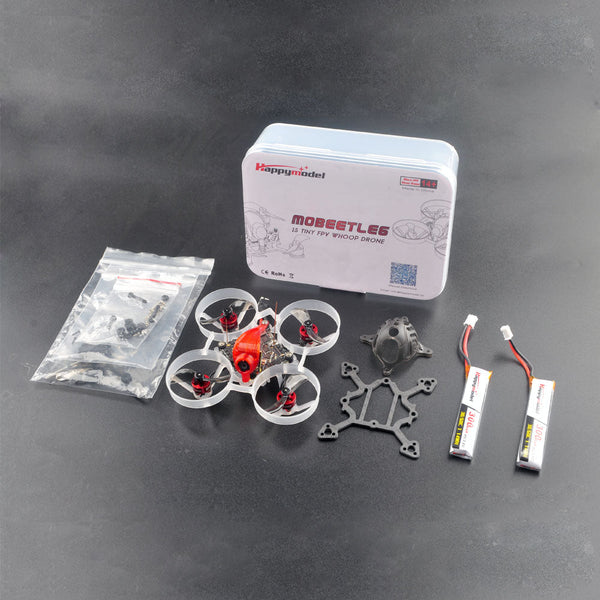

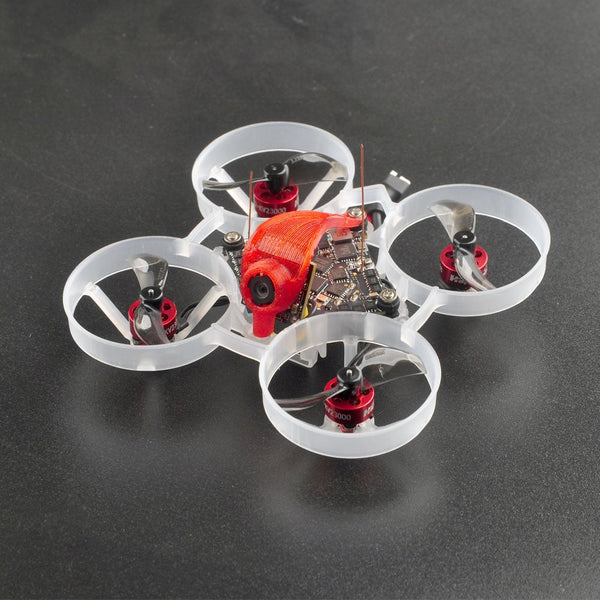

Happymodel Mobeetle6 Ultralight Whoop/ Toothpick Quadcopter

Happymodel Mobeetle6 Ultralight Whoop/ Toothpick Quadcopter

$230.00

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Receiver:

FrSky

ELRS 2.4Ghz

SKU: HM-MOBB6-FR Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

Features

The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone

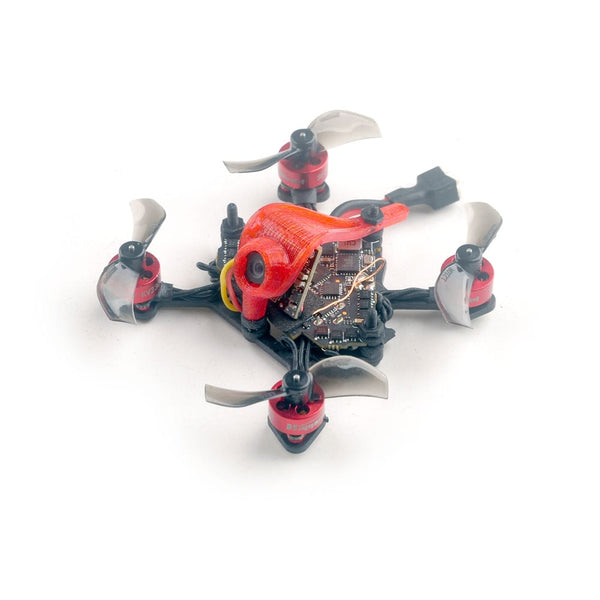

Comes with tooth pick frame for convert
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell SE0702 brushless motors with pcb wire board
Built-in OPENVTX up to 400mw
Low profile Canopy design

&feature=emb_title

Specifications

Brand Name: Happymodel
Item Name: Mobeetle6 whoop and toothpick 2-IN-1 FPV Racer Drone
Wheelbase: 65mm
Size: 80mm*80mm*30mm
Weight: 17.5g (without battery)

Motor	Mode:SE0702 KV23000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ9.5mm14mm Weight(g):1.5g No.of Cells(Lipo):1S only
Propeller	Weight:0.19g Material:PC Pitch:1 inchProps Dia:30mm Center Hole Dia:1mm

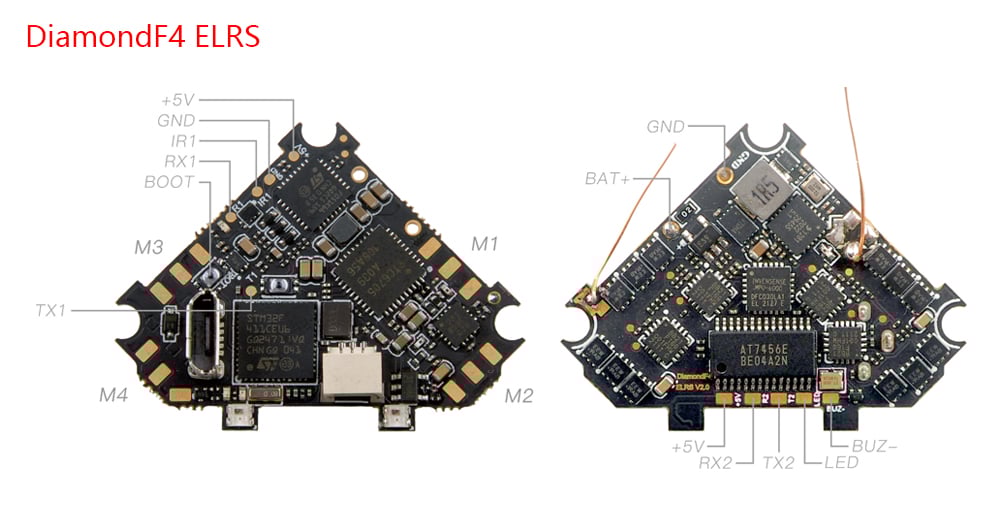

Flight controller	(ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280 (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G OPEN VTX Built-in SPI ELRS V2.0/Frsky receiver Built-in 5V 1A BEC
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_50_REV16_8.HEX Default protocol: DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn't flash separately ExpressLRS firmware
Onboard Frsky SPI D8 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 modelChannels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.3mm(M6.5) FOV 140° Signal System: NTSC S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mmW14mmH9mm
Lipo Battery	Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 7.5gConnector: PH2.0
