HGLRC RaceWhoop 30 Frame

$128.00

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

Colour:

SKU: D5E-ACA-CA9 Category: LJ-Automotive - Racing & Flight Simulators - Frames & Bucket Seats, Racing & Flight Sim Hardware - Steering Wheels / Pedals / Shifters / Accessories. Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

Features

The Frame supports (20x20-25.5x25.5-30.5x30.5mm) installing holes;
3 Inches Racewhoop frame, compact and fly anywhere you want;
Fluorescent effect, 5 colors optional, ultra-high color value;
Made of composite material, super explosion resistant;
Racewhoop Structure design, strong and No damage to the the frame or the components.

Specifications

Brand: HGLRC
Model: Racewhoop30
Item Name: 147mm Wheelbase 3 Inch Frame Kit
Material: 3K carbon fiber
Wheelbase: 147mm
Size: 200x200mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Space: 30mm
Flight control mounting hole: 20x20mm/25.5x25.5mm/30.5x30.5mm
Support camera:19*19mm

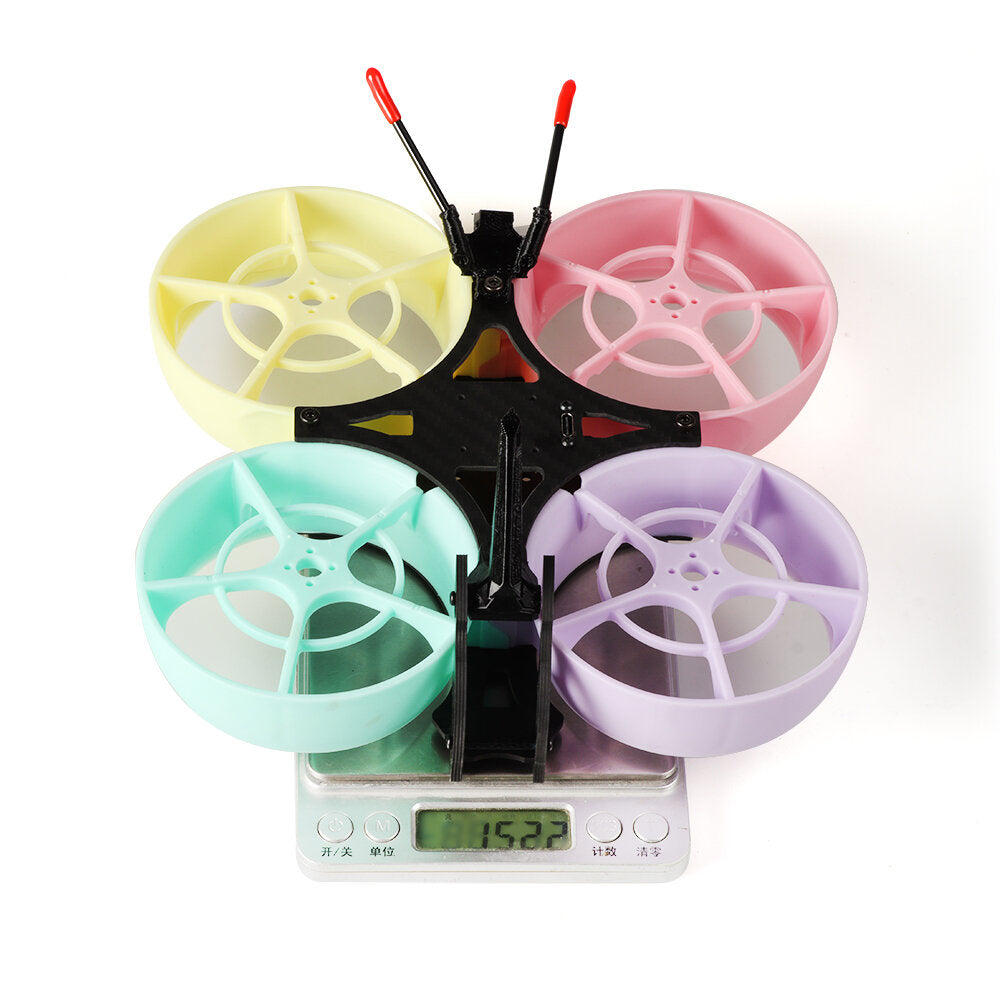

Weight: 152.2g

Recommended Parts

Flight Controller: 20x20mm/25.5x25.5mm/30.5x30.5mm F4/ F7 Flight Controller
Brushless ESC: 25-40A 4in1 ESC
Brushless Motor: 20XX / 21XX Series Motor
Propeller: 30XX 3 Inch Propeller
FPV Camera: 19mm Width
Lipo Battery: 4S 850mAh - 1300mAh Lipo

The following Parts are used on the pre-built RaceWhoop30:

( NOT Included, recommend buy together)

FC & ESC Stack: 20x20mm HGLRC ZeusF728 STACK Zeus F722 F7 FC & Zeus 28A BL_S 3-6S 4in1 ESC
Brushless Motor: HGLRC AEOLUS 2105.5 2800KV / 3600KV 3-4S Brushless Motor
Propeller: 2 Pairs Gemfan D76 76mm 3 Inch 5-Blade Ducted Propeller
VTX: HGLRC Zeus nano VTX 25/100/200/350mW 5.8Ghz 40CH
FPV Camera: Caddx Ratel 2 1/1.8'' Starlight 1200TVL 2.1mm Lens FPV Camera
