IMX477 12.3MP Camera Sensor – Compatible with Jetson/RPi (for C/ CS Lenses)

IMX477 12.3MP Camera Sensor – Compatible with Jetson/RPi (for C/ CS Lenses)

$105.00

FAST DIspatch & Global delivery
Quality Assured Brand Manufacturer

LJ-A Fitment & Warranty Assurance

Every component at LJ Automotive is Workshop-Verified. We don't just supply; we install, test, and prove our hardware in-house to ensure OE+ standards for your build.

Precision Fitment: Guaranteed to meet factory mounting points for a "Plug-and-Play" experience.
12-Month Mechanical Warranty: Full coverage against manufacturing defects on all performance hardware.
7-Day Technical Support: Direct access to our workshop team for installation guidance or fitment queries.

Verified UK Business | Workshop to Street™

SKU: 798-C51-2EB Category: Tag: Shopify Collective, Unmanned Tech

Description
Product Reviews

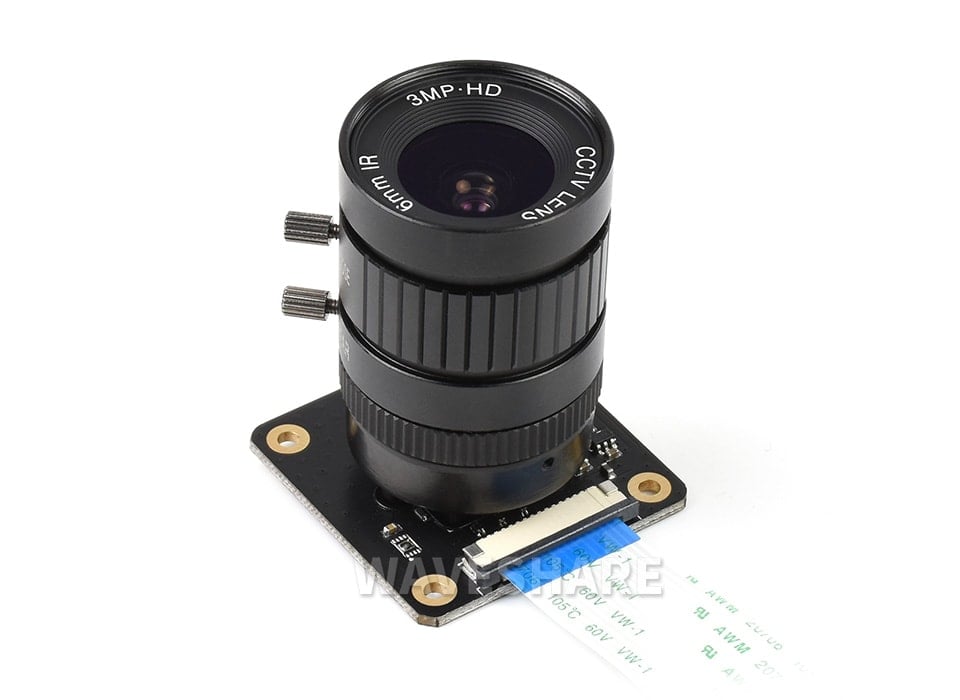

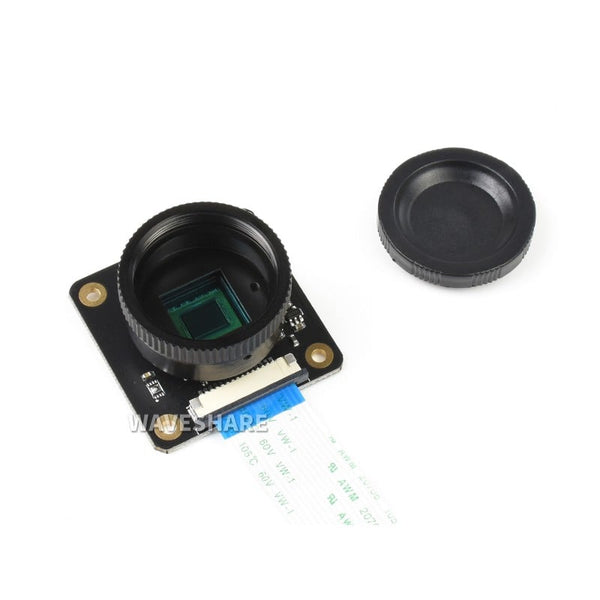

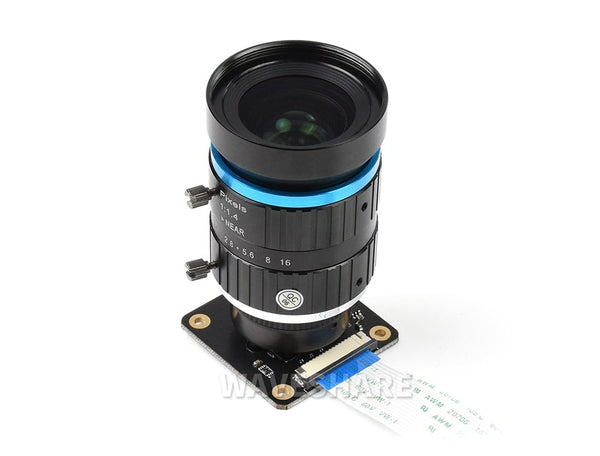

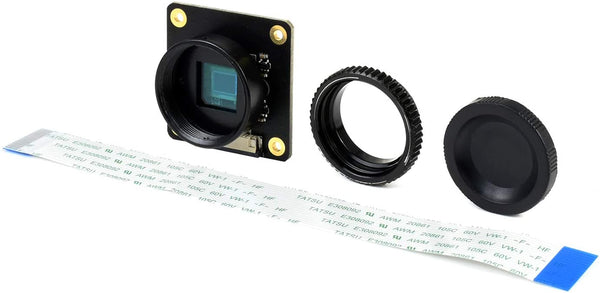

This is a high quality 12.3MP image sensor that uses C / CS lenses that we sell. It is designed to work with Jetson and Raspberri Pi boards if you require high quality images for your project.

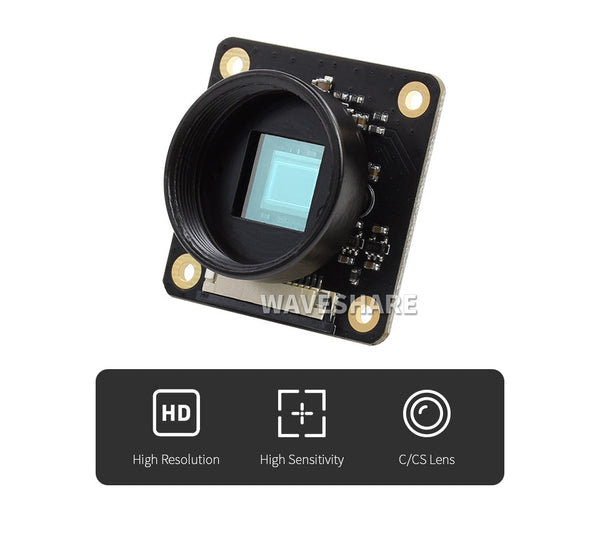

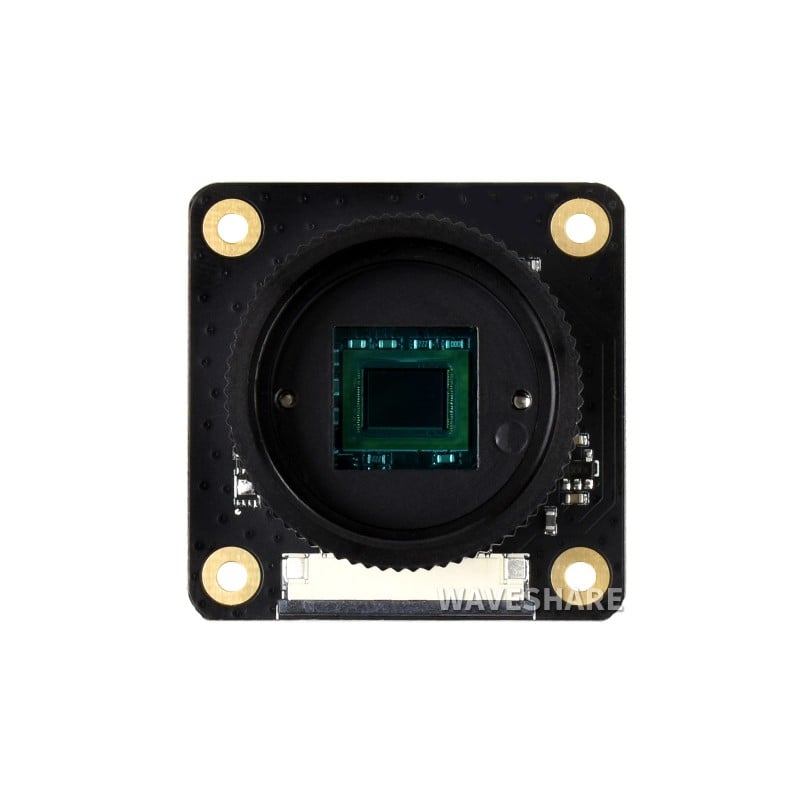

The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor , and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution ( 12.3MP ) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Compared To 8MP Of Normal Raspberry Camera, This High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect

Specifications

SENSOR	Sony IMX477R
	12.3MP, 4056 (H) × 3040 (V)
	7.9mm CMOS diagonal size
	1.55µm (H) × 1.55µm (V) pixel size
OUTPUT	RAW12 / 10 / 8, COMP8
BACK FOCUS	Adjustable
LENS SUPPORT	C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER	Integrated

Lens Selection Guide

	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens
IMAGE FORMAT	1/2"	1"	2/3"	1"	1/2.3"
FOCAL LENGTH	6mm	16mm	25mm	35mm	8-50mm
APERTURE	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4
MOUNT	CS-mount	C-mount
ANGLE OF VIEW	63°	1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°
BACK FOCUS	7.53mm	17.53mm
OPTICAL LENGTH	-	67.53mm	-	-	-
DISTORTION	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m
DIMENSIONS	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm
OPERATION	Manual aperture adjustment
WEIGHT	53g	133.7g	82g	78g	148g
